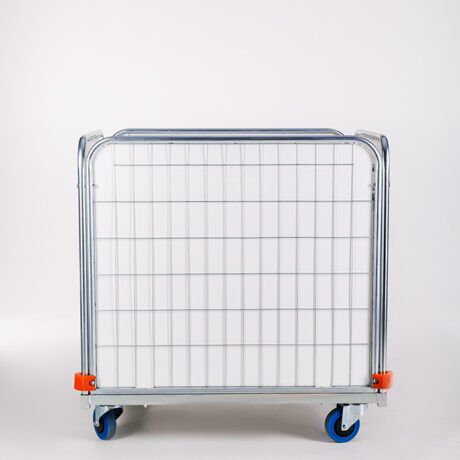

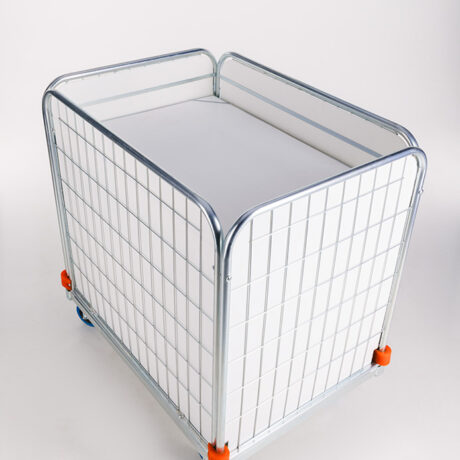

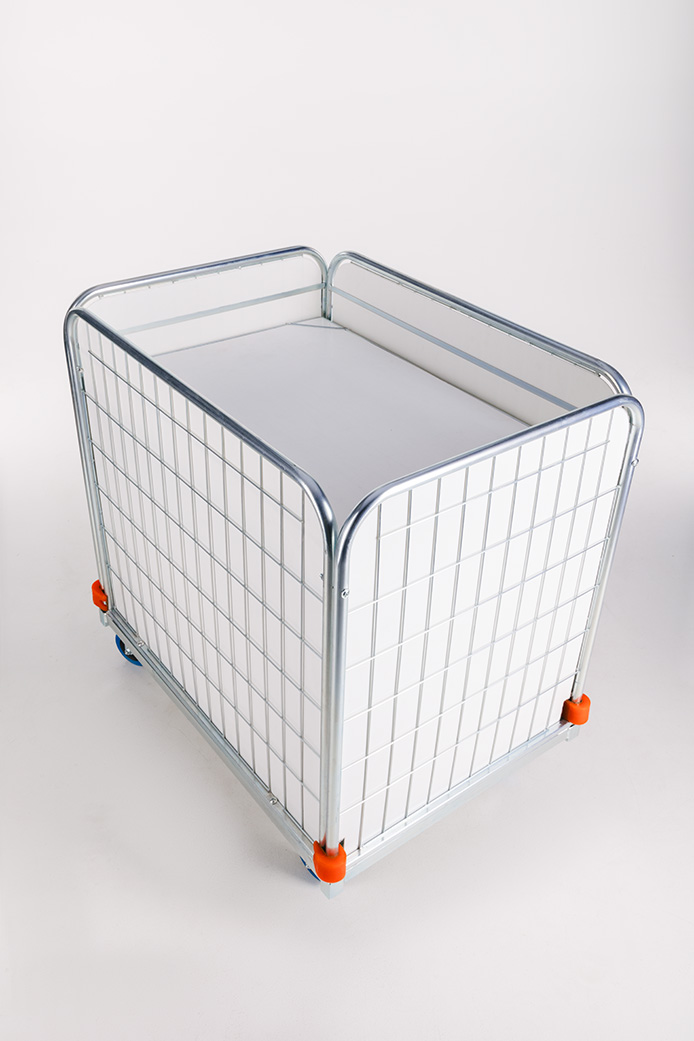

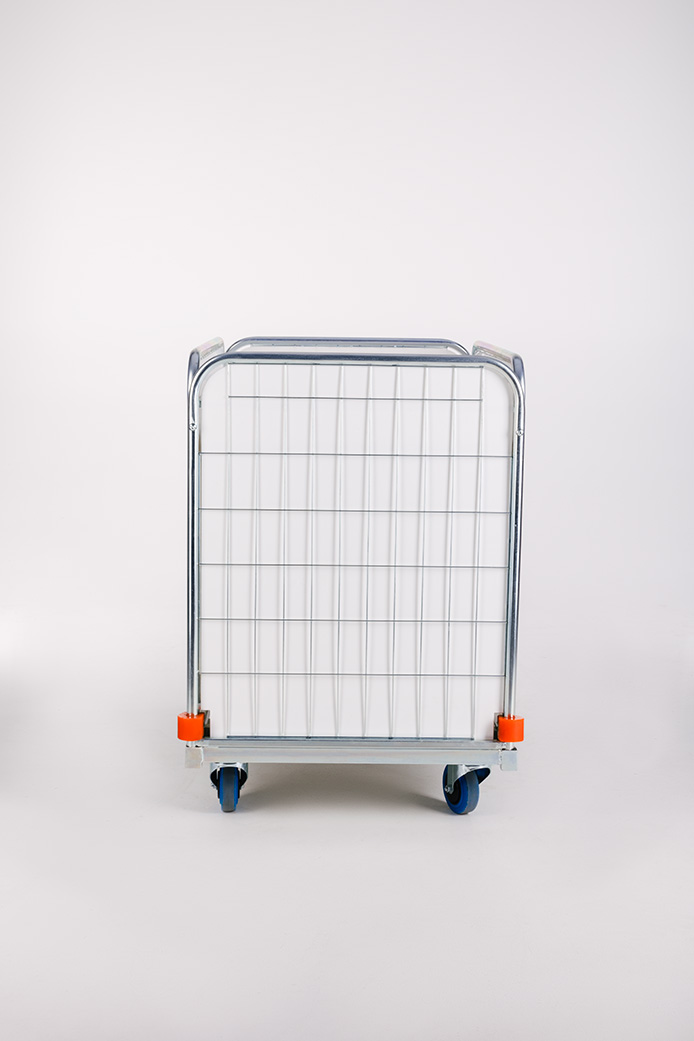

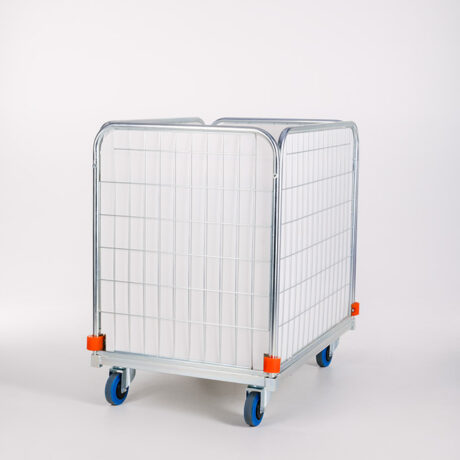

Trolley ML (small)
Trolley ML (small)
Trolley ML (small)
| Code | Height, mm | Width, mm | Depth, mm | Weight, kg |
|---|---|---|---|---|
| 11.1420.5 | 870 | 883 | 626 | 41 |
Standard equipment:
- Wheels ø 100 mm (4 pcs swivel)
- Spring (optional: 41 kg, 63 kg, 84 kg)
- Shelf-bottom
- Lifting mechanism
- Base bumpers
Additional options for the trolley:
In addition to the standard configuration, you can add/modify the equipment
Coating: galvanic zinc
The frame of the trolley is made of round tubes
The sides and the shelf are made of impact-resistant plastic sheets
The bottom smoothly lowers as it is loaded and returns to its original position during unloading
- Load Capacity: 90 kg
- Volume: 250 l
Wheel Arrangement Scheme:
- 2-2 (rectangular shape)

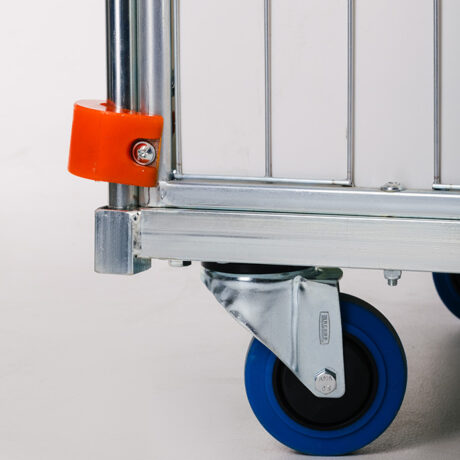

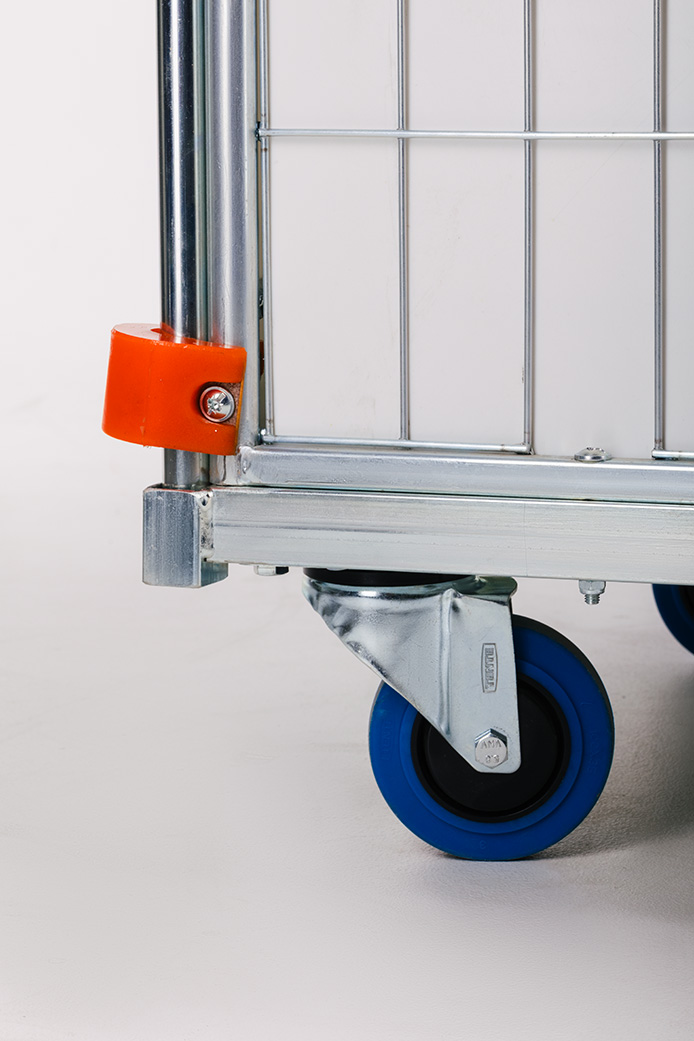

Wheels
Fixed wheel
Swivel wheel
Swivel with brakes
- Diameter: 125 mm
- Color: Grey / Blue
- Core material: Polypropylene
- Outer material: Thermoplastic Rubber
- Bearing: Single ball bearing
- Dynamic load per wheel: 165 kg
Fixed wheel
Swivel wheel
Swivel with brakes
- Diameter: 100 mm
- Color: Grey / Blue
- Core material: Polypropylene
- Outer material: Thermoplastic Rubber
- Bearing: Single ball bearing
- Dynamic load per wheel: 110 kg
Base bumpers
Bumpers are used to connect the walls of the cart and to protect both the cart and the surrounding space from impacts and damage
- Availability: in stock
- Material: polyurethane
Spring
